This package aims to make exploration, analysis, and publication of
results from any of the stocnet packages easier, faster, and more
consistent. It does this by letting you simply set a theme, say for your
institution, and then those palettes will be used whenever you use
plot() or graphr() on an object created in one
of the relevant packages.
It is very easy to set a theme. Just type
stocnet_theme() to see which is the theme currently set,
and to get a list of available themes. Then enter the chosen theme name
in
library(autograph)
library(patchwork)
stocnet_theme()
#> ℹ Theme is set to default.
#> ℹ The following themes are available: default, bw, iheid, ethz, uzh, rug, unibe, crisp, neon, and rainbow.

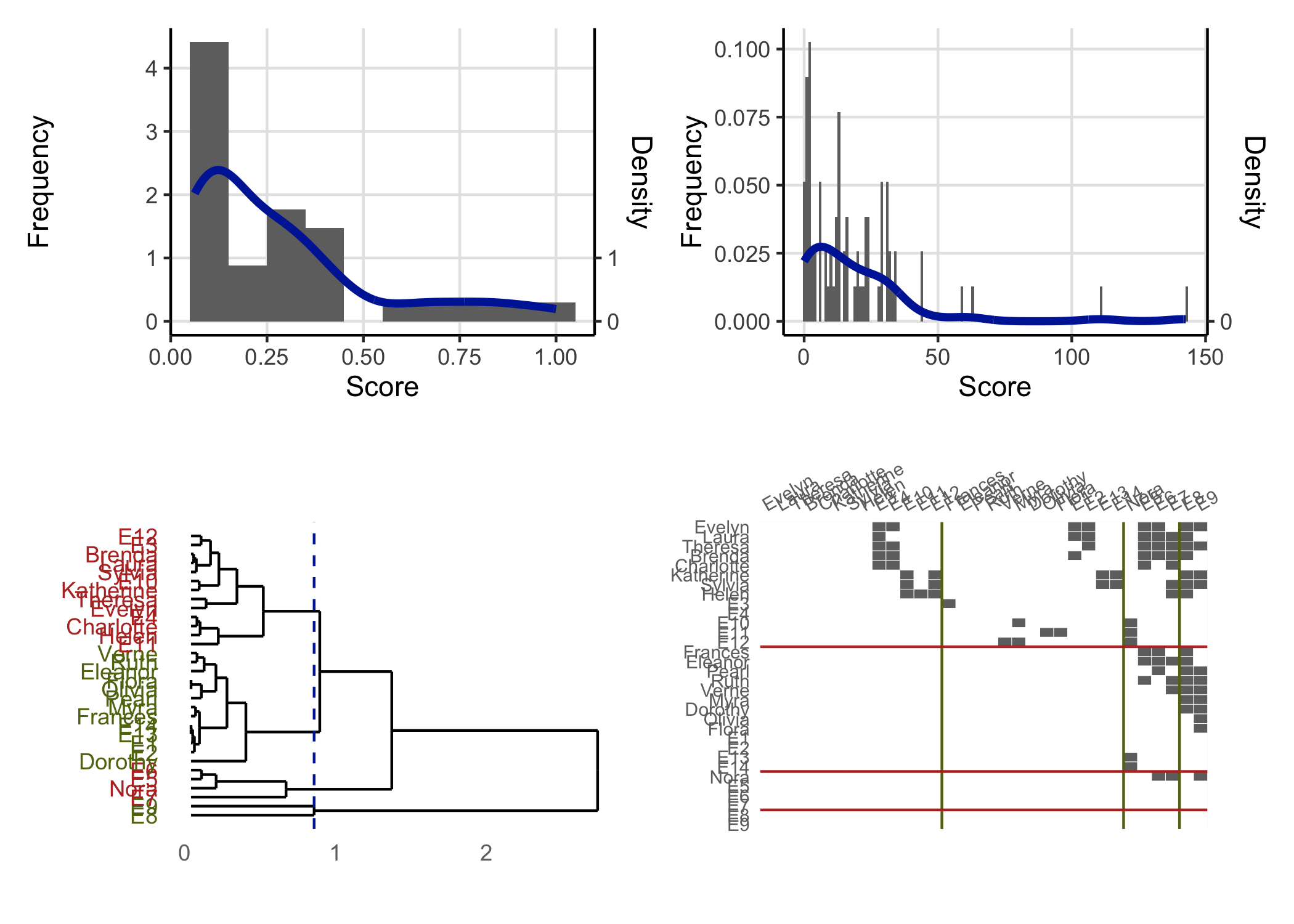

(plot(node_degree(ison_karateka)) +
plot(tie_betweenness(ison_karateka)))/
(plot(node_in_regular(ison_southern_women, "e")) +
plot(as_matrix(ison_southern_women),
membership = node_in_regular(ison_southern_women, "e")))
stocnet_theme("ethz")
#> ✔ Theme set to ethz.

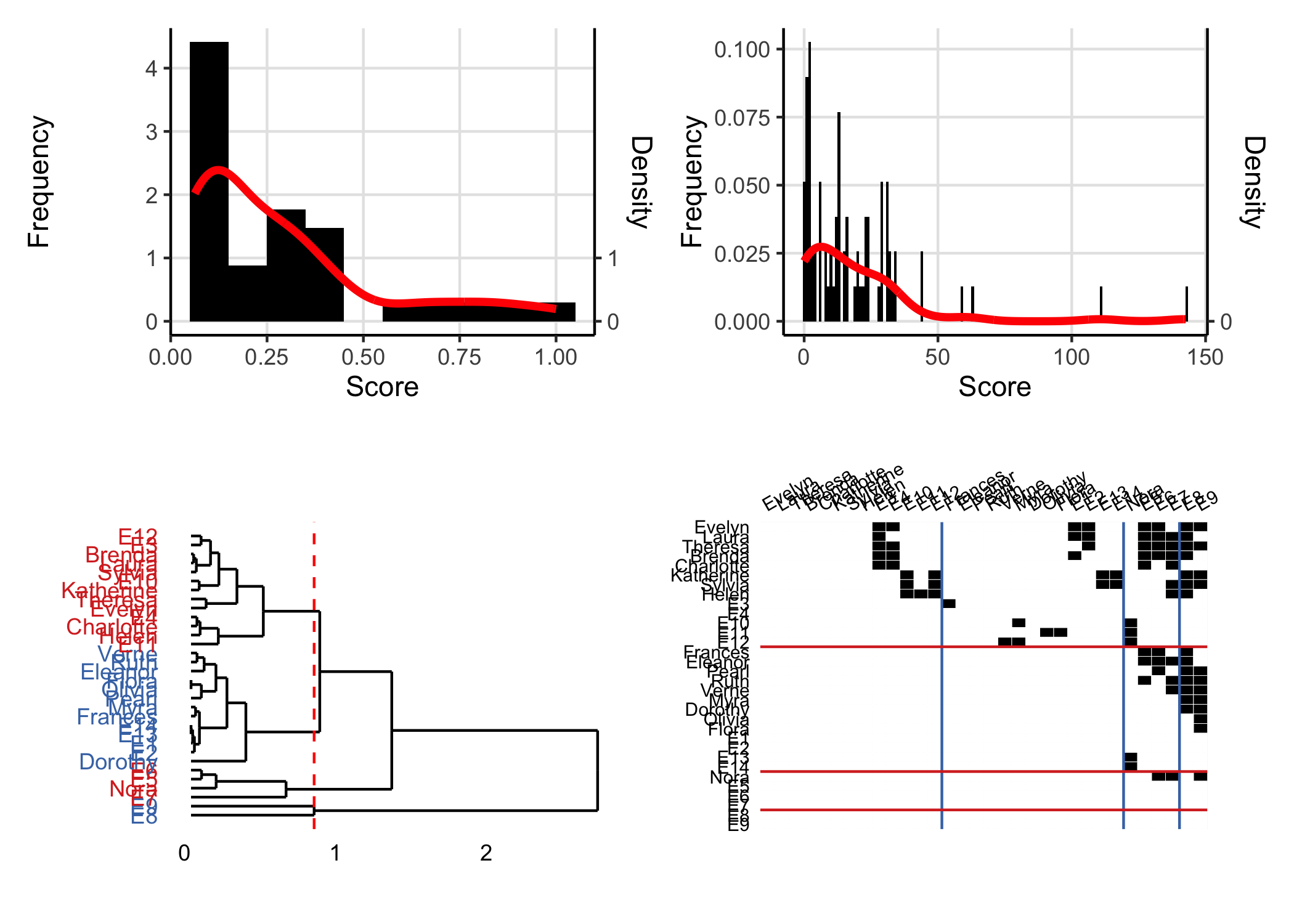

(plot(node_degree(ison_karateka)) +
plot(tie_betweenness(ison_karateka)))/
(plot(node_in_regular(ison_southern_women, "e")) +
plot(as_matrix(ison_southern_women),
membership = node_in_regular(ison_southern_women, "e")))
The easiest way to install the latest stable version of
{autograph} is via CRAN. Simply open the R console and
enter:
install.packages('autograph')
library(autograph) will then load the package and make
the data and tutorials (see below) contained within the package
available.
For the latest development version, for slightly earlier access to new features or for testing, you may wish to download and install the binaries from Github or install from source locally. The latest binary releases for all major OSes – Windows, Mac, and Linux – can be found here. Download the appropriate binary for your operating system, and install using an adapted version of the following commands:
install.packages("~/Downloads/autograph_winOS.zip", repos = NULL)install.packages("~/Downloads/autograph_macOS.tgz", repos = NULL)install.packages("~/Downloads/autograph_linuxOS.tar.gz", repos = NULL)To install from source the latest main version of
{autograph} from Github, please install the
{remotes} package from CRAN and then:
remotes::install_github("stocnet/autograph")remotes::install_github("stocnet/autograph@develop")Those using Mac computers may also install using Macports:
sudo port install R-autograph
Development on this package has been funded by the Swiss National Science Foundation (SNSF) Grant Number 188976: “Power and Networks and the Rate of Change in Institutional Complexes” (PANARCHIC).
