subscreen (subgroup screening) package has been developed to systematically analyze data, e.g., from clinical trials, for subgroup effects and visualize the outcome for all evaluated subgroups simultaneously. The visualization is done by a shiny application called Subgroup Explorer. Typically, shiny applications are hosted on a dedicated shiny server, but due to the sensitivity of patient data in clinical trials, which are usually protected by informed consents, the upload of this data to an external server is prohibited. Therefore, we provide our tool as a stand-alone application that can be launched from any local machine on which the data is stored.
Table of content (click on topic to jump to a specific chapter):subscreencalc Input
subscreencalc Output
subscreenvi
subscreenshow
Identifying outcome relevant subgroups has now become as simple as possible! The formerly lengthy and tedious search for the needle in a haystack is replaced by a single, comprehensive and coherent presentation.
The central result of a subgroup screening is a diagram, in which each dot stands for a subgroup. The diagram can show thousands of them. The position of the dot in the diagram is determined by the sample size of the subgroup and the statistical measure of the treatment effect in the respective subgroup. The sample size is shown on the horizontal axis while the treatment effect is displayed on the vertical axis. Furthermore, the diagram shows the line of the overall study results. For small subgroups, which are found on the left side of the plot, larger random deviations from the mean study effect are expected, while the deviation from the study mean for larger subgroups tends to be smaller. Therefore, the dots in the figure are expected to form a funnel for studies with no conspicuous subgroup effects. Any deviations from this funnel shape may hint towards conspicuous subgroups.
The subscreen package consists of three major functions:
subscreencalc, subscreenvi and
subscreenshow. The first function generates an object of
class SubScreenResult, which is required for the shiny
application. The second function performs a variable importance
calculation via random forests. This calculation is optional and will
unlock the Variable importance-tab in the Subgroup Explorer.
The third function starts the shiny application Subgroup Explorer. In
the recent version of the app, subscreenshow can be accessed without

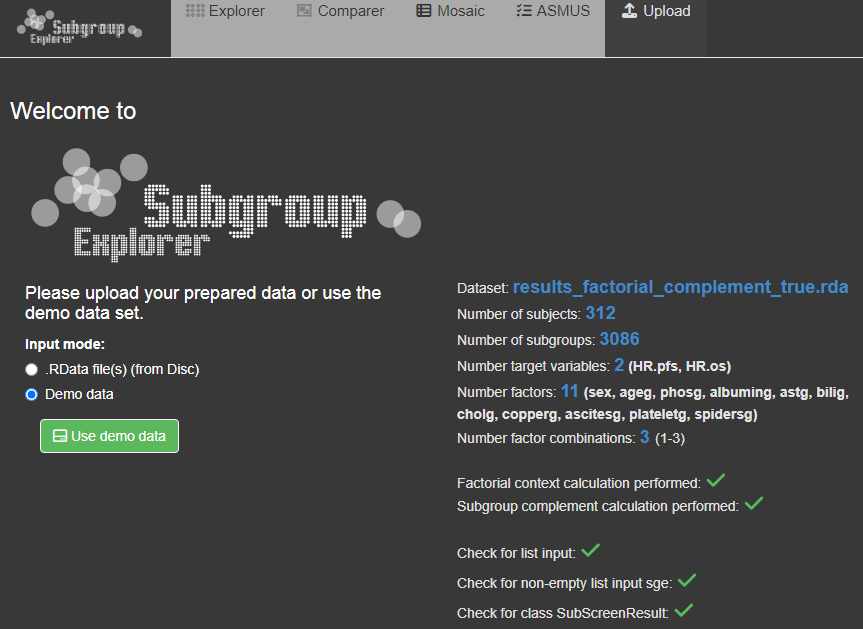

data. In this case, demo data can be selected in the ‘upload data’-tab.
To upload own data, either the SubScreenResult object is called in
subscreenshow or in the Upload Page the SubScreenResult object is
uploaded. In the next sections, all three functions are explained in
more detail.
subscreencalc Inputsubscreencalc returns a list object of class
SubScreenResult. This list object contains all subgroup
information required in the shiny application. All function parameters
are explained in detail in the subsections of this chapter.The following
table gives an overview of all parameters which can be adjusted:
data data frame with study data
eval_function name of the evaluation function for data analysis
subjectid character of variable name in data that contains the subject identifier, defaults to 'subjid'
factors character vector containing the names of variables that define the subgroups (required)
max_comb maximum number of factor combination levels to define subgroups, defaults to 3
nkernel number of kernels for parallelization (defaults to 1)
par_functions character vector of names of functions used in eval_function to be exported
to cluster (needed only if nkernel > 1)
verbose logical value to switch on/off output of computational information (defaults to TRUE)
factorial logical value to switch on/off calculation of factorial contexts (defaults to FALSE)
use_complement logical value to switch on/off calculation of complement subgroups (defaults to FALSE)
For example, the data set could include the following columns from the example data set:
| id | trt | sex | ageg | albuming | cholg | event.pfs | timepfs |
|---|---|---|---|---|---|---|---|
| 1 | 1 | f | high | Low | Low | 1 | 3029 |
| 2 | 1 | f | High | High | Low | 1 | 391 |
| 3 | 1 | m | Low | High | Low | 0 | 299 |
| … | … | … | … | … | … | … | … |
where sex, ageg, albuming and cholg are the categorized factor variables and event.pfs and timepfs are the variables used to derive the endpoint via the eval_function (in this example the hazard ratio).
The input function eval_function() needs to be defined by the user. This function calculates the endpoint(s) for each subgroup, e.g. number, rate, mean, odds ratio, hazard ratio, confidence limit, p-value, … The results have to be returned as a numerical vector. Each element of the vector represents an endpoint (outcome/treatment effect/result).
In our example, we calculate the hazard ratio for progression free survival:
hazardratio <- function(D) {
HRpfs <- tryCatch(exp(coxph(Surv(D$timepfs, D$event.pfs) ~ D$trt )$coefficients[[1]]),
warning=function(w) {NA})
HRpfs <- 1/HRpfs
HR.pfs <- round(HRpfs, 2)
HR.pfs[HR.pfs > 10] <- 10
HR.pfs[HR.pfs < 0.00001] <- 0.00001
data.frame( HR.pfs)
}
which will add a target variable column named
HR.pfs.
The parameter factors requires a vector containing the
names of all variables that define the subgroups. In the example above
factors = c('sex','ageg','phosg','albuming',...).
This parameter determines the maximum number of factor combination
levels to define subgroups. The default is 3. All combinations between 1
and max_comb will be calculated automatically. With
max_comb = 3 a subgroup could be defined for example as
male participant with low age and high albumin values. A high value of
max_comb could lead to small or empty combinations of subgroups, which
are hard to interpret. So, values of higher than 5 are not recommended.
If the maximum number of combination is bigger than the number of
factors, then the number of factors is used as value for max_comb. In
this case a note will be returned.
To reduce the calculation time, the parameter nkernel can be
increased. To use multiple kernels the package parallel needs to be
installed. If nkernel > 1 is used, please make sure to use the
parameter par_functions for all functions within the eval
function (see next chapter).
This parameter is only required when multiple kernels are used. It
requires the name(s) of functions used in eval_function to be exported
to the cluster. In the example, the hazardratio function (see 2.1.2)
uses the functions coxph and Survfrom the
survival package. Therefore these functions need to be specified in the
parameter par_functions = c('coxph','Surv'). Otherwise an
error appears: Error in checkForRemoteErrors(val) : 4 nodes produced
errors; first error: could not find function ‘coxph’.
A text of the computational information can be returned with
verbose = TRUE. Otherwise verbose should be set to FALSE.
The returned text gives information about the start and end time of
calculation as well the calculation time of the several steps within the
function. Furthermore, the number of subjects, number of subgroup
factors, and number of subgroups are returned.
If (factorial=TRUE) the calculation of factorial contexts is performed, which is required for the ASMUS-tab (see chapter 3.5). The calculation time of subscreencalc increases if the parameter factorial is set to TRUE. A factorial context is defined as the combination of all factor levels of a given subgroup. As an example, for a subgroup with three factor combination sex: f, ageg: High and cholg: Low (all factor variables with 2 levels) the factorial context includes eight subgroups. The concept of factorial contexts will be explained in more detail in chapter 3.5.1.
To activate the complement-calculation of a subgroup the parameter use_complement has to be set to TRUE. Since the complement of subgroups with more than one factor level is not necessarily a subgroup as well, the calculation of the complement needs to be activated, if the complements are to be included.
subscreencalc OutputThe calculation performed via subscreencalc returns a list object of
class SubScreenResult. The following list entries are
generated in subscreencalc: sge, max_comb, min_comb, subjectid, factors,
results_total.
| SGID | nfactors | HR.pfs | N.of.subjects | sex | ageg | cholg | albuming |
|---|---|---|---|---|---|---|---|
| 1 | 1 | 1.06 | 36 | m | Not used | Not used | Not used |
| 2 | 1 | 2.45 | 276 | f | Not used | Not used | Not used |
| 3 | 1 | 0.89 | 101 | Not used | High | Not used | Not used used |
| … | … | … | … | … | … | … | … |
where every subgroup gets its own subgroup id (column SGID). Also, the number of factor levels in this subgroup is shown in the column nfactors. If a factor variable is not used in the subgroup definition, the specific column entry is coded with ‘Not used’. If the factorial context calculation is activated, a column FCID_all is generated in addition, where subgroups related to the same context are condensed. Since for every target variable the factorial context is checked for completeness and pseudo completeness, three columns for every target variable are created and saved in results$sge. In the example of hazard ratio of progression free survival (HR.pfs), the columns FCID_complete_HR.pfs, FCID_incomplete_HR.pfs and FCID_pseudo_HR.pfs are generated. If the parameter use_complement is set to TRUE, the column Complement_HR.pfs is also available in the results data set.
The other list entries (max_comb, min_comb, subjectid, treat, and factors) include the parameter values given in the function call.
The list entry results_total includes the overall results of all subjects. So in the example above, we get the entry results$results_total:
| HR.pfs | N.of.subjects |
|---|---|
| 1.11 | 312 |
The SubScreenResult object returned by subsreencalc is used as input for subscreenshow (see chapter 2.3.)
subscreenviThe function subscreenvi performs a variable importance calculation via random forests using the package ranger. The values returned describe the variability of variable importance between treatments. High variability between treatments implies that a subgroup might be more relevant, because the treatment seems to have an influence on how important the variable is for modelling. Low variability implies less relevance as the subgroup is equally important in all treatments.
The following function parameters can be adjusted:
data data frame containing the dependent and independent variables.
y name of the column in data that contains the dependent variable.
cens name of the column in data that contains the censoring variable,
if y is an event time (default=NULL).
trt name of the column in data that contains the treatment variable (default=NULL).
x vector that contains the names of the columns in data with the independent
variables (default=NULL, i.e. all remaining variables)
subscreenshow
scresults SubScreenResult object with results from a subscreencalc call
variable_importance variable importance object calculated via subscreenvi to unlock
'variable importance'-tab in the app
host host name or IP address for shiny display
port port number for shiny display
NiceNumbers list of numbers used for a 'nice' scale
windowTitle title which is shown for the browser tab
graphSubtitle subtitle for explorer graph
favour_label_verum_name verum name for label use in explorer graph
favour_label_comparator_name comparator name for label use in explorer graph
None of the parameter is required to start the app. By entering subscreenshow() to the R console, the app starts on the upload screen. The app itself will be explained in more detailed version in chapter 3.
To start the subgroup screening via the Subgroup Explorer application, the subscreenshow-function is used (see also previous subchapter 2.3). The application itself consists of five main tabs: Upload, Explorer, Comparer, Mosaic and ASMUS (Automatic/Advanced Screening of one- or Multi-factorial Subgroups). Each tab will be explained in more detail in the next subchapters.
If the data parameter scresults in subscreenshow(scresults = NULL) is null or not specified, the app starts on the upload page. On the upload page a demo data set or a already saved SubScreenResult object (.RData file) can be selected. If a saved result data set should be loaded, the file can selected via the ‘Browse…’-button and the ‘Upload data’-button. For the demo data set the ‘demo data’ box has to be checked and submitted via the ‘Use demo data’-button. After a data set is selected, the data set information and some checks appear on the right side of the screen. After clicking the ‘Upload data’-button all other tabs are unlocked and the Explorer-tab appears.
If the SubScreenResult object is already entered via the ‘scresults’ parameter in subscreenshow, the app starts directly on the Explorer page. In this case a third input mode called ‘Uploaded data via function call’ appears on the upload page. Since it is possible to use different data sets in the same session, you can use this option the re-upload the data set used in the original function call or just to see the data set information.
Since the factorial context calculation changed due to recent versions, the check for ‘context calculation performed’ also includes a check for the newest package version. For older versions features like the ASMUS-tab are no longer supported.
The Explorer-tab is the main part of the Subgroup Explorer. The explanation will be divided into four parts (diagram, lists, interaction plot and options).

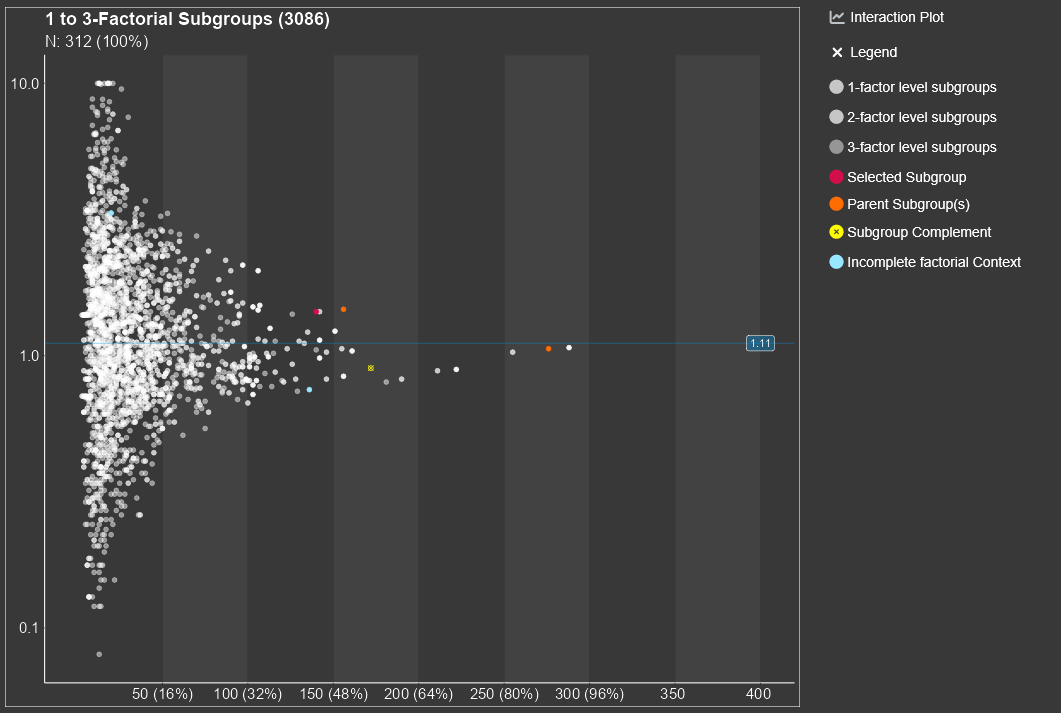

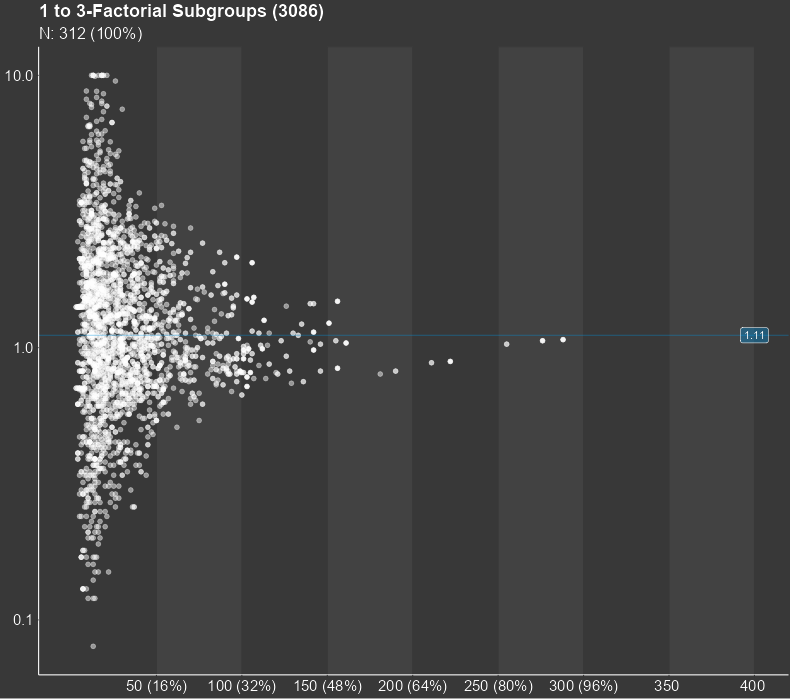

The central part of the Subgroup Explorer is the diagram in the
middle, in which each single dot stands for a subgroup. The diagram may
show thousands of them. The position of the dot in the diagram is
determined by the sample size of the subgroup (displayed on the
horizontal axis) and the statistical measure of the treatment effect
(vertical axis) in that subgroup. Furthermore, the diagram shows the
line of the overall study results. For small subgroups, which are found
on the left side of the plot, larger random deviations from the mean
study effect are expected, while for larger subgroups on the right side,
only small deviations from the study mean can be expected to be chance
findings. So, for a study with no conspicuous subgroup effects, the dots
in the figure are expected to form a kind of funnel. Any deviations from
this funnel shape hint to conspicuous subgroups.
It is important to note that the subgroup screening does not only consider subgroups, which are defined by one single factor, e.g., sex or age-group. The strength of the Subgroup Explorer is that it considers combinations, e.g., ‘old’ men from Europe or ‘young’ Asian women. It is possible to analyze all combinations of two factors, three factors, four factors, etc. Typically it make sense to limit this to a maximum of five factors, since combinations of more than five factors define subgroups which are often empty, extremely small in size, or difficult to interpret.
By clicking on a single dot, a subgroup is selected and appears in red. If multiple points are close to each other, a small area around the mouse click is detected and a list of selected subgroups appears. In here one specific subgroup can be selected and apperas in red. For all points an information box can be shown by using mouse hover.
By selecting a subgroup several lists, which include more information about the selected subgroup, appear below the plot.
An interaction plot appears on the right side of the main plot, if a subgroup has a complete (or pseudo-complete) factorial context. For more details about the concept of a factorial context see chapter 3.5.1.
Several options for the appearance of the diagram are available and explained in chapter 3.2.4.

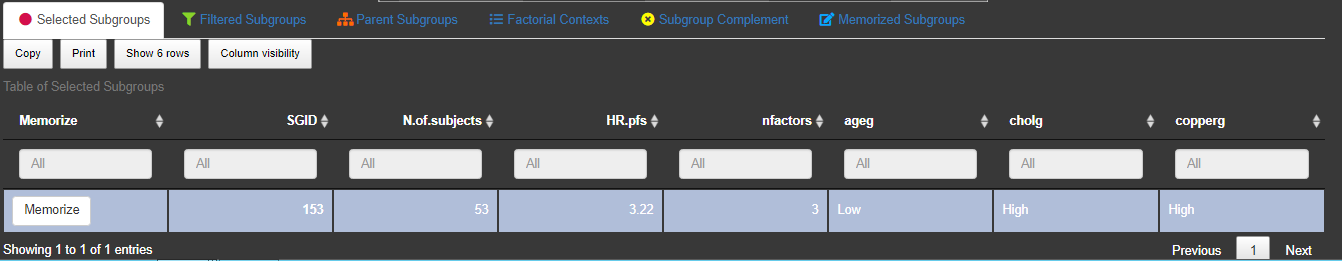

By clicking on a dot, at the bottom a table will be displayed under the tab called ‘Selected Subgroup’ listing the selected subgroup. The second tab, called ‘Filtered Subgroups’, lists all subgroups which are chosen by the drop-down combo-box filtered subgroups in the menu on the left side of the graph. Under the tab ‘Parent subgroups’ the list of all subgroups with one number of factor combination less than the selected subgroup appear. For example if the subgroup with 2 subgroup defining factors ageg: Low and phosg: Low, is selected, the parent subgroups are the two 1-factorial subgroups ageg:Low and phosg:Low. This allows the comparison with the parent subgroup as a reference. The Factorial Context and the subgroup complement for selected subgroups are displayed as well in seperated tabs.
To save/memorize a subgroup the ‘Memorize’-button in the table of the
‘Selected Subgroups’-tab can be used. All memorized subgroups appear in
green in the Subgroup Explorer graph. With the switch button above the
list of memorized subgroups the label of the memorized subgroups can be
in or excluded in the graph.
By switching
this button to on, the subgroup information for all saved subgroups are
drawn into the diagram. Since their might be a space limitation for the
information texts for too many subgroups, it could help to increase the
axes sizes via ‘Display Options’.
On the right side of the Explorer tab an intercation plot can be displayed. Per default the plot is collapsed. To use it the user needs to click on ‘Interaction Plot’ and then select a subgroup. The interaction can only be displayed for subgroups with an at least pseudo factorial context.If a complete or pseudo complete subgroup is selected, the interaction plot panel opens automatically. Furthermore is the interaction plot is only available for subgroups with 1 to 3 subgroup defining factors. The vertical axis of the interaction plot can be synchronized with the diagram (default) or automatically fitted to the values of the context.
There are several display options within the Explorer tab, which are categorized in the four party ‘Variable options’, ‘Importance Tab’, ‘Display options’, Colour options’.
The drop-down combo boxes in the Variable options allow switching
between different target variables (y-axis), changing the reference
variable (x-axis, in general the number of subjects/observations), or
selecting a specific subgroup factor and a corresponding value to be
highlighted in the plot (‘Subgroup Filter’). Which level of detail with
regard to the subgroup factor combinations should be displayed can be
chosen via the ‘Subgroup level(s)’-slider. The maximum of this slider
can be changed with the parameter max_comb in
subscreencalc(). The brightness of the gray dots
corresponds to the number of factors in the graph. Dots with more
factors are brighter than those with less factors.
It is also possible to change the limits of the axes and if possible (only if all values of the target variable are positive) change the y-axis to logarithmic scale.
All options are provided with small help texts, which can be shown by hovering the question mark symbol next to them.
Within the Display options the user can change dot size and click/select radius. The dot size can be changed to be related to the number of subjects for each subgroup. The colour brigthness is also adjustable.
A high amount of colors can be individualized by the user. Beside the dot colors the overall app appearance can be changed to a ‘print’-version where the background appears in light gray.
The next tab is similar to the Explorer tab, but allows the quick comparison between two endpoints. By selecting two target variables two diagrams appear on top of each other. By clicking a subgroup the same subgroup is displayed in both plots. With this approach all conspicuous subgroups in one endpoint can easily be be checked for another endpoint. It is also possible to display two target variables directly against each other via the integrated ‘Bubble plot’. The information about the number of subjects is then displayed through the subgroup size. Subgroups which are conspicuous in both target variables then shown up in the corners, while unconspicuous subgroups appear in the middle of the graph.
For an easy visualization about the contingency tables of subgroup sizes and their target variable values, the display of a mosaic plot can be beneficial. The user can select up to 3 factor variables, different target variables for the mosaic display. By using the mouse hover the user can get more information about the subgroups.

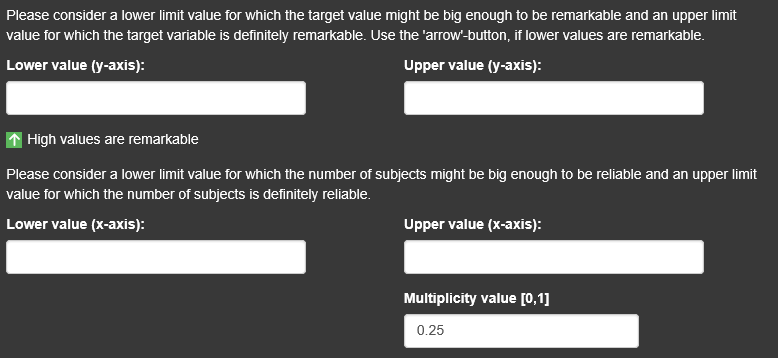

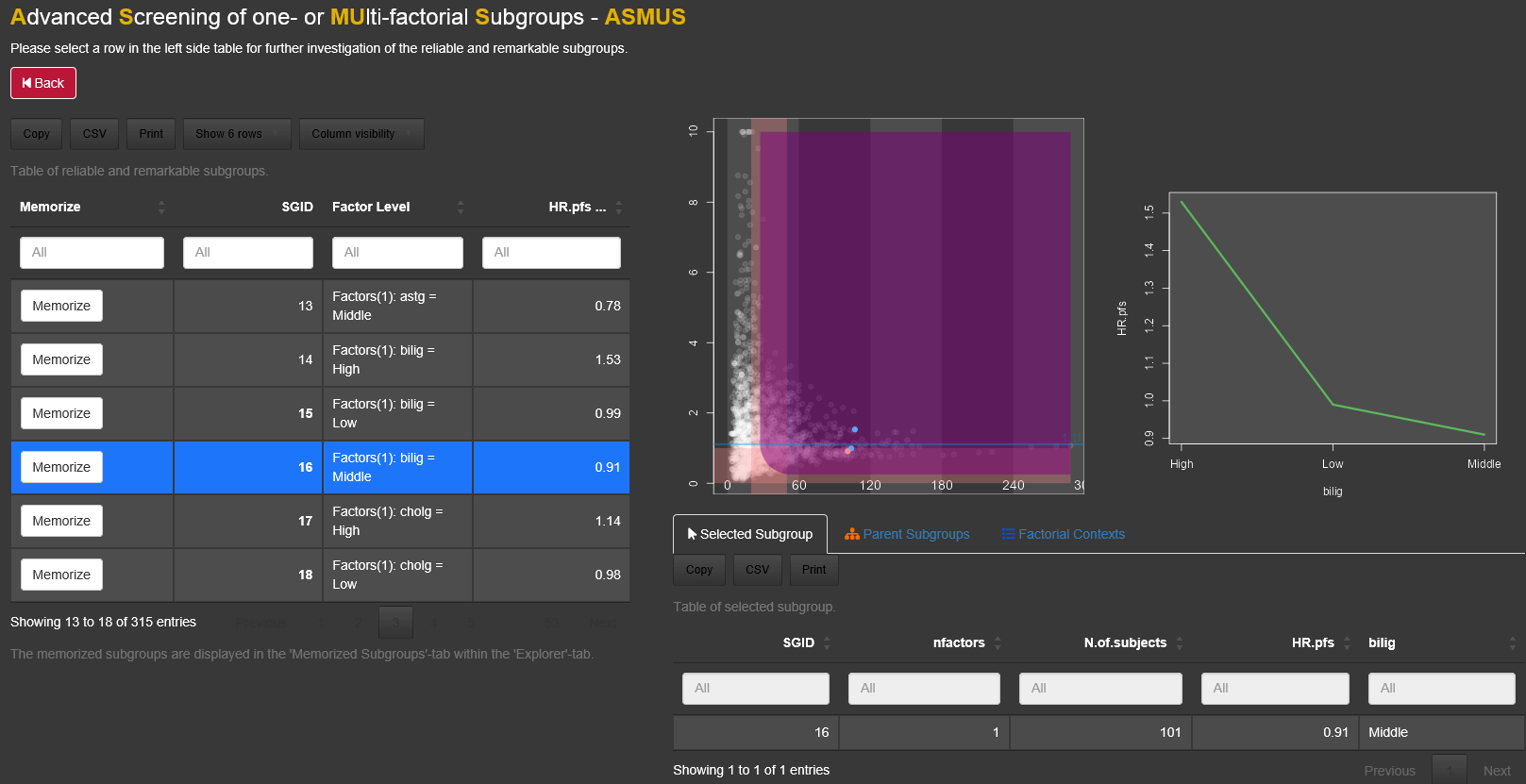

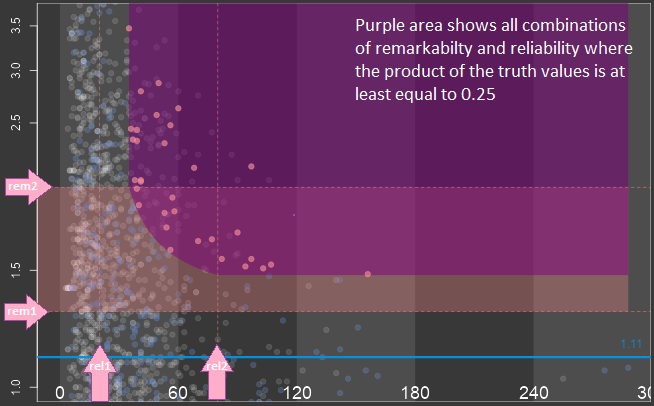

ASMUS is a feature which guides the user of the Subgroup Explorer through the screening of tens of thousand of subgroups with the aim to find those which are worth pursuing. The key of ASMUS is to focus on assessable subgroups only. This reduces the number of subgroups to be considered drastically. A fuzzy logic approach is used to select subgroups which have a remarkable treatment effect and which provide reliably information. An expert in pharmacology can then decide whether the subgroup defining factors explain the treatment effect reasonably.
The challenge to the user has been to find subgroups which are worth pursuing. There was no feature, which guided the user through the process of finding worth pursuing subgroups. The newly implemented feature ASMUS helps to find all worth pursuing subgroups semi-automatically. Subgroup analyses are performed to assess the heterogeneity of treatment effects across different groups of patients. There are always subgroups with a treatment effect which differs from the study treatment effect. The fundamental question is whether this observed treatment effect is reproducible or an incidental finding. This is a matter of the causal influence of the subgroup-defining factors. Theoretical knowledge or experience can provide evidence. Ultimately, only another clinical trial can answer the question. This is neither a matter of the size of the treatment effect nor the number of patients in the subgroup. Consequently, statistical tests cannot answer the question. Screening a data set from a clinical trial can only mean to identify subgroups that are worth pursuing in terms of reproducibility. A subgroup is worth pursuing if and only ifThe assessability of a subgroup is indispensable in a subgroup
analysis.
If a subgroup is not assessable, its discovery is not helpful, no matter
how big the treatment effect and how big the subgroup is. Hence, ASMUS
considers only those subgroups as worth pursuing which are assessable. A
subgroup is assessable iff it has good references for comparison. A
subgroup is a good reference for another subgroup if and only if it
belongs to the same factorial context.
| subgroup |
sex |
age | target variable |
|---|---|---|---|
| 1 |
male |
<65 | 1.7 |
| 2 |
male |
65-75 | 1.3 |
| 3 |
male |
=>75 | 2.1 |
| 4 |
female |
<65 | 1.5 |
| 5 |
female |
65-75 | 1.6 |
| 6 |
female |
=>75 | 3.6 |
Table 3.5.1.1 Complete factorial context with factors sex and age.
Pseudo-complete:| subgroup |
sex |
age |
target variable |
|---|---|---|---|
| 1 |
male |
<65 | 1.7 |
| 2 |
male |
65-75 | 1.3 |
|
|
|
|
|
| 4 |
female |
<65 | 1.5 |
| 5 |
female |
65-75 | 1.6 |
|
|
|
|
|
Table 3.5.1.2 Pseudo-complete factorial context with factors sex and age after removing level age >= 75.
Incomplete:| subgroup |
sex |
age |
target variable |
|---|---|---|---|
| 1 |
male |
<65 | 1.7 |
| 2 |
male |
65-75 | NA |
| 3 |
male |
=>75 | 2.1 |
| 4 |
female |
<65 | 1.5 |
| 5 |
female |
65-75 | 1.6 |
| 6 |
female |
=>75 | NA |
Table 3.5.1.3 Incomplete factorial context with factors sex and age.
This question whether a subgroup is remarkable can only be answered
for the drug currently under development and in comparison to the study
treatment effect. Medical knowledge is needed to answer the question.
Although the size of the treatment effect of a given subgroup does not
say anything about the reproducibility, it makes sense to include it
into the screening strategy since finding a reproducible but neglectable
treatment effect is not useful. To identify remarkable treatment effects
it is difficult to define a crisp cut point between the remarkable and
the non-remarkable treatment effect. It is much easier to define two
numbers, rem1 and rem2, such that treatment effects less than a are
truly not remarkable greater than rem2 are truly remarkable between rem1
and rem2 are remarkable with a certain degree of truth. ASMUS is based
on this fuzzy logic approach utilizing a linear truth-function.
The provided information is reliable when the sizes of
the subgroups of a factorial context play an important role, but this is
not the only criterion. The relation of the treatment group sizes within
the subgroups play role as well. A big subgroup with drastically
imbalanced treatment groups may not considered to provide less reliable
information than a smaller subgroup with nearly balanced treatment
groups. However, ASMUS is based on the size of subgroups only for
simplicity reasons. Although the reliability of information does not say
anything about the reproducibility of the treatment effect it makes
sense to include it into the screening strategy. Even if a treatment
effect is remarkable and the subgroup-defining factors explain the
treatment effect reasonably the subgroup is not worth pursuing because
the reliability of the provided information is poor. Again it is
difficult to define a crisp cut point between subgroup sizes
sufficiently big to provide reliable information and those which do not.
It is much easier to define two numbers, rel1 and rel2, such that
subgroup sizes less than rel1 are truly too small greater than rel2 are
truly big enough between rel1 and rel2 are big enough with a certain
degree of truth.
The truth value for the remarkability of the treatment effect and the truth value for the reliability of the provided information are combined with a logical “and”. From the many proposal, which can be found in the literature, to calculate a logical “and” in fuzzy logic (minimum, algebraic product, drastic product, etc. ), we selected the algebraic product because it is simple and convex. The convexity is appreciated because a lower truth-value for the remarkability requires a compensation with a higher truth-value for the reliability and vice versa. The central question is when do the subgroup-defining factors explain the treatment effect reasonably. It can only be answered by experts in pharmacology.
So in ASMUS, the user selects whether the assessability is based on
the complete factorial context only or complete and pseudo-complete
factorial contexts.
The user also specifies the numbers a and b for the
remarkability and the reliability criterion. For a given subgroup it is
determined if it is assessable.
The truth values for the treatment effect and the size
of the subgroup are calculated and multiplied (algebraic product for a
fuzzy logical “and”). If the subgroup is assessable and the product of
the truth values exceeds a user defined threshold the subgroup is
proposed to be evaluated whether its subgroup defining factors explain
the treatment effect reasonably. The direction of remarkability can be
changed via tickbox. The multiplicity value requires a value between 0
and 1 and influence the steepness and shape of the curve. When all
settings have been made, the number of subgroups which are remarkable
and reliable regarding the selection are displayed and the
‘Continue’-button appears in green.
After clicking continue, the second page of ASMUS opens where the
remarkable and reliable subgroups can be analysed in more detail.
